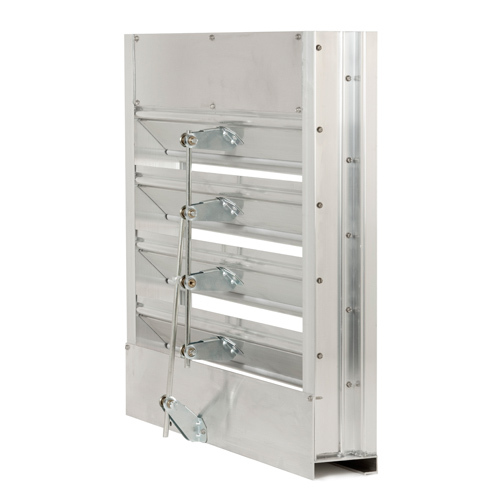

The Model ACL is a heavy duty Extruded Aluminum Combination Louver/Damper. It is designed to protect the air intake or exhaust openings in the exterior walls of any building from rain and weather while still providing efficient airflow. The Drainable Blade design provides the BEST PROTECTION against water entering the opening by channeling water away from the blades and down the jambs. This eliminates water cascading from blade to blade. The adjustable rear blades allow for tight shutoff of the opening when needed.
Performance (Tested in accordance to AMCA Standard 500):
Water penetration: Beginning point at .01 oz./sq. ft. is 1118 FPM.
Free area: 7.22 sq. ft. for a 48" x 48" test size.
Pressure drop: see Submittal Dwg.
Frame: 4" deep channel x .080 thick Extruded Aluminum.
Blades: Drainable style, .080 thick Extruded Aluminum, 45 degrees.
Seals: Extruded TPV.
Linkage: On-blade type with a Thumb Screw Operator as Standard.
Birdscreen: 1/2" flattened Aluminum mounted on the interior.
Minimum: 12" W x 12" H
Maximum Single Section: 60" W x 96" H
Sizes over 60" Wide and 96" High constructed in multiple sections.
100 to 240 VAC, 50/60 Hz Motor Pack.
1-1/2" Flanged Frame.
