The Model GFL is a heavy duty Galvaneal Steel Fixed Blade Louver. Its modular construction is designed to protect the air intake or exhaust openings in the exterior walls of any building from rain and weather while still providing efficient airflow. The Galvaneal Steel finish is ready for you to paint in the field or leave as mill finish.
View details
Performance (Tested in accordance to AMCA Standard 500):
Water penetration: Beginning point at .01 oz./sq. ft. is 709 FPM.
Free area: 7.07 sq. ft. for a 48" x 48" test size.
Pressure drop: see Submittal Dwg.
Standard Construction:
Frame: 4" deep channel x 16 gauge A-60 Galvaneal Steel.
Blades: K style, 16 gauge A-60 Galvaneal Steel, 45 degrees.
Construction: Tabbed.
Birdscreen: 1/2" flattened Aluminum mounted on interior.
Finish: Mill
Sizes:
Minimum: 12" W x 12" H
Maximum Single Section: 48" W x 72" H
Sizes
over 48" Wide constructed in multiple sections. Modular design provides
seemless mullions from the front side. No need for mullion covers.
![Galvaneal Steel fixed blade louver - 4" deep channel frame - K style blades](https://acpshutters.com/downloads/products/gfl/_productThumb/gfl-front.jpg)

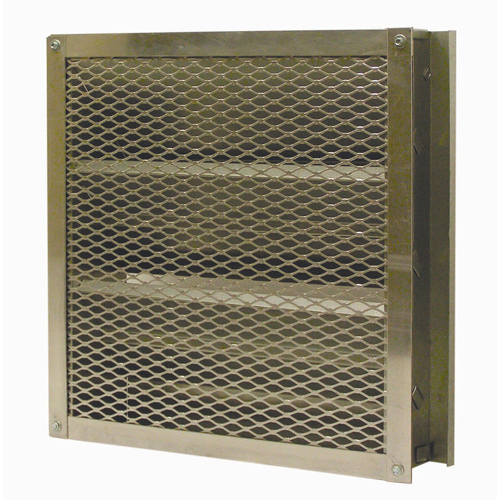

![Galvaneal Steel fixed blade louver - 4" deep channel frame - K style blades](https://acpshutters.com/downloads/products/gfl/_productThumb/gfl-back.jpg)
